Modern International carries a full line of high-quality cold heading wire for use in all types of fasteners.
C-1006
For the Manufacture of Tubular rivets
Specifications:
| C |
MN |
P |
S |
| .08 Max |
.25-.40 |
.4 Max |
.05 Max |
Tensile Strength
60,000 PSI Max
Diameter Tolerance
+/- .001
Aluminum Killed
Fine Grain
Phosphate Coated
Spheridized Annealed In Process
C-1018

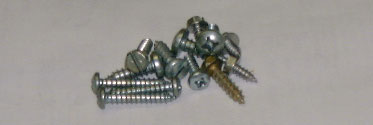

For the Manufacture of Philips Head Quality Screws
Specifications:
| C |
MN |
P |
S |
| .15-.20 |
.60-.90 |
.4 Max |
.05 Max |
Tensile Strength
70,000 PSI Max
Diameter Tolerance
+/- .001
Aluminum or Silicon Killed
Fine Grain
Phosphate Coated
Spepherdized Annealed In Process
Brass Wire
Spec: ASTM B-134-81
Grain Size: .020-.050
Tensile Strength: 50-65,000 PSI
Coil Weight: 150lbs
Coil I. D. 16"-20"
Coil Winding: Counter Clockwise
Diameter Tolerance: +/- .0005
Available in all diameters, grades CDA 260 70/30, CDA 230 85/15
ALSO AVAILABLE IN STAINLESS STEEL AND ALUMINUM
To place an order or for more information,
call Modern International's wire expert,
Ira Halbfinger at:
Phone: 800-322-WIRE (9473). or 732-696-9100
Fax: 732-696-9111
Email: ihalbfin@moderninternational.com |
